Iscar

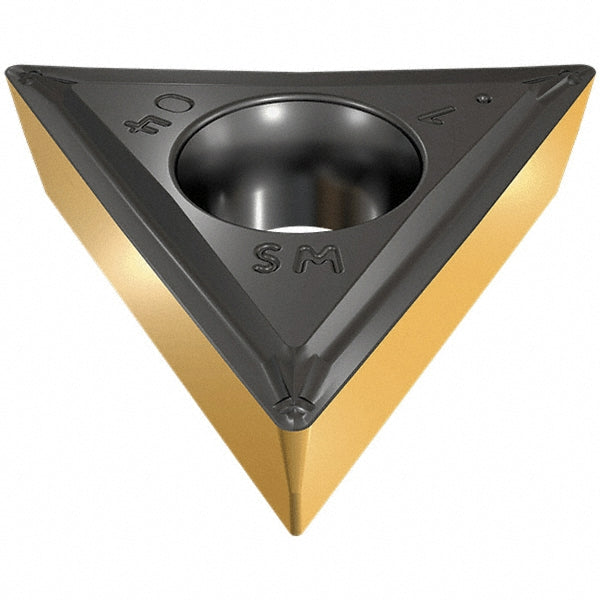

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505571
MFR# 5505571ISO/ANSI# ISO 13399Series Isoturn
$19.37List $24.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTriangle
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5505571 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Hole diameter0.1730
Included angle60
Insert materialCarbide
Insert shapeTriangle
Insert size code3-1
Insert styleTCMT
Iso codeISO 13399
Manufacturer gradeIC907
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
