Iscar

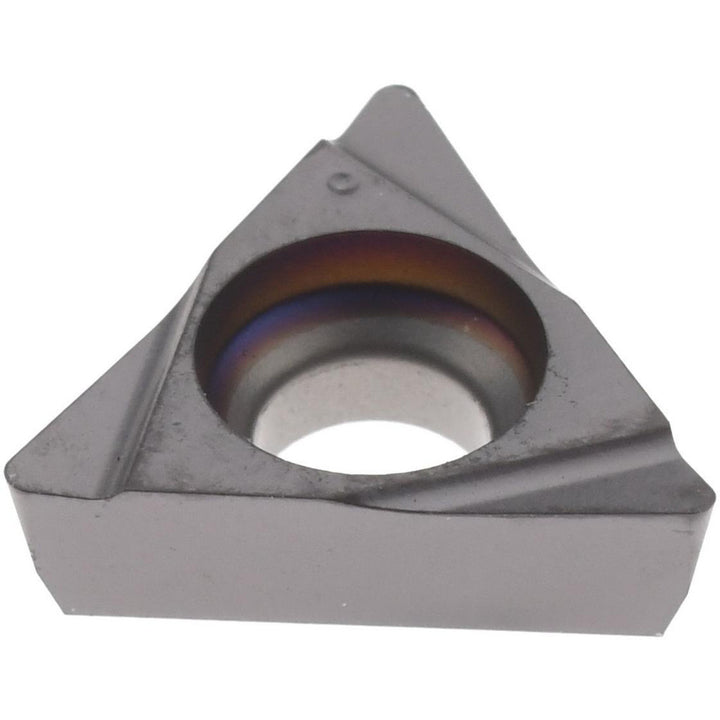

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5505574
MFR# 5505574ISO/ANSI# ISO 13399Series Isoturn
$20.59List $26.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505574 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1378
Included angle60
Inscribed circle in1/4
Insert handLeft Hand
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code221
Insert styleTPGX
Iso codeISO 13399
Length0.4331
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Relief angle11
ShapeTriangle
StandardsISO 13399
Thickness in1/8
