Iscar

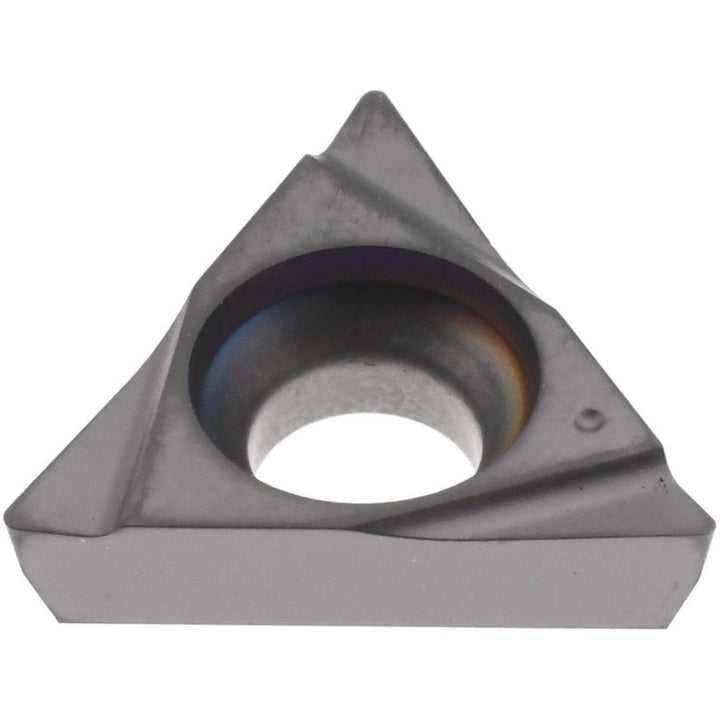

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5505575
MFR# 5505575ISO/ANSI# ISO 13399Series Isoturn
$19.11List $24.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505575 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.0984
Included angle60
Inscribed circle in7/32
Insert handLeft Hand
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code730
Insert styleTPGX
Iso codeISO 13399
Length0.3748
Manufacturer gradeIC908
Material gradeC7; C8
Maximum depth of cut0.0790
Primary workpiece materialUniversal
RakePositive
Relief angle11
ShapeTriangle
StandardsISO 13399
Thickness in3/32
