Iscar

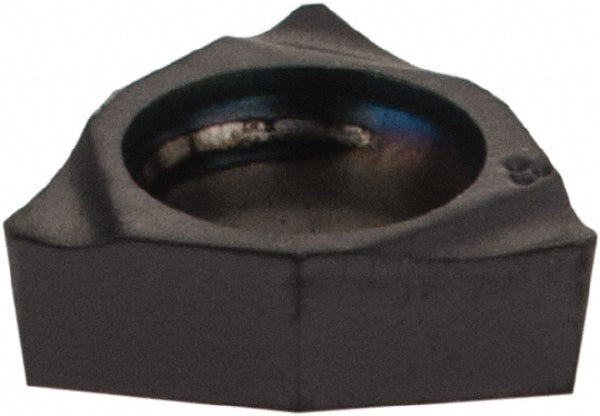

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5505577
MFR# 5505577ISO/ANSI# ISO 13399Series Isoturn
$27.37List $35.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5505577 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
ChipbreakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Hole diameter0.0910
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code020102
Insert styleWCGT
Iso codeISO 13399
Length0.0858
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.0790
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
