Iscar

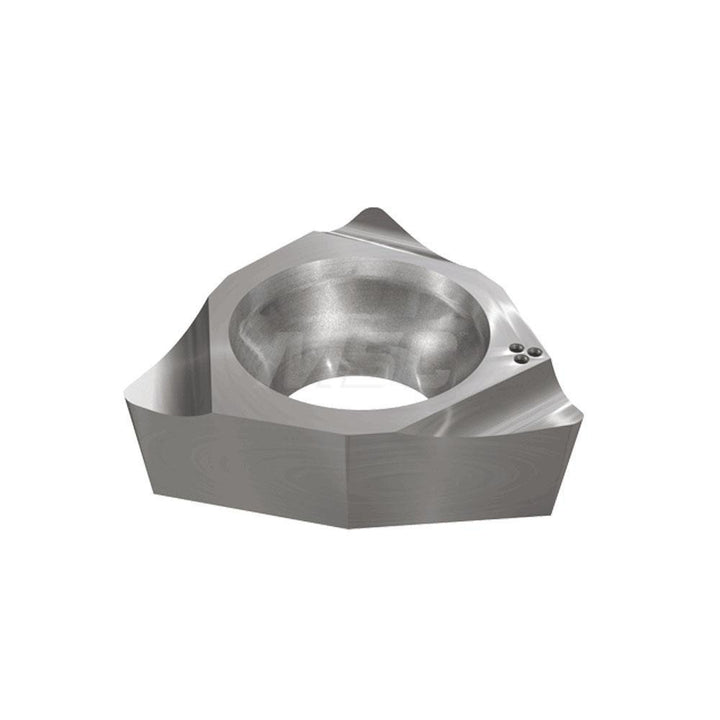

WCGT 020104L Carbide Insert, Grade IC908, TiN - Iscar 5505578
MFR# 5505578ISO/ANSI# WCGT 020104LCat# WCGT 020104LSeries Isoturn
$27.37List $35.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeIC908
MaterialCarbide
CoatingTiN
Description
The Iscar 5505578 is a WCGT 020104L carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
ChipbreakerT
Coating finishTiN
Coating processPVD
Corner radius in1/64
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code020104
Insert styleWCGT
Iso codeWCGT 020104L
Length0.0860
Manufacturers catalog numberWCGT 020104L
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.0790
Primary workpiece materialUniversal
Relief angle7
StandardsISO 13399
