Iscar

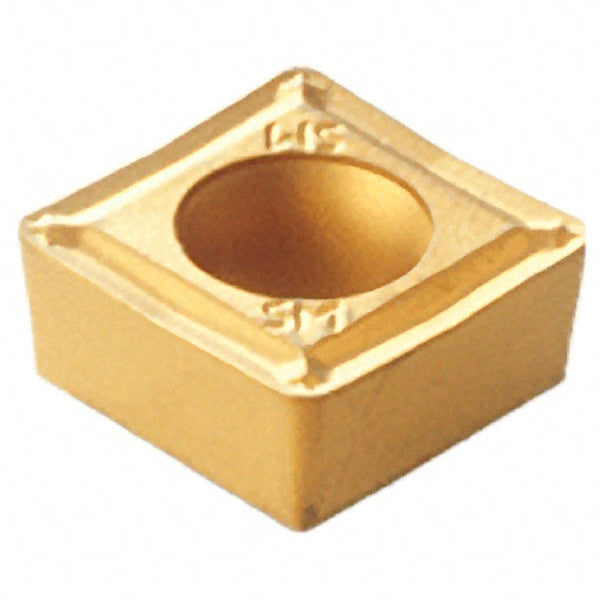

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505651
MFR# 5505651ISO/ANSI# ISO 13399Series Isoturn
$15.91List $20.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5505651 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle90
Inscribed circle in3/8
Insert holding methodScrew
Insert materialCarbide
Insert shapeSquare
Insert size code3-2
Insert styleSCMT
Insert thickness in5/32
Iso codeISO 13399
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1181
Primary workpiece materialUniversal
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
Width in3/8
