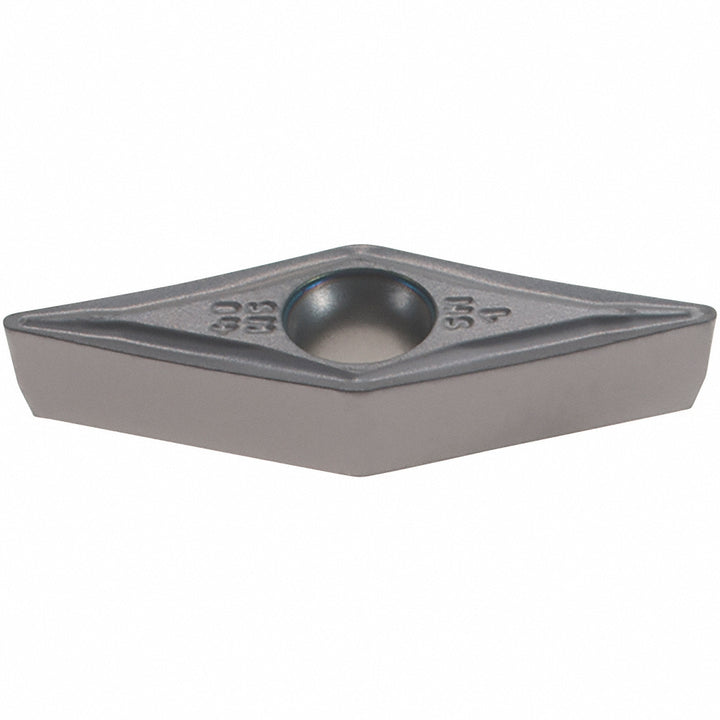

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5505695

Iscar

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5505695

MFR# 5505695ISO/ANSI# VCMT110304Series Isoturn

$24.09List $30.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC908
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5505695 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.

Specifications

Ansi insert codeVCMT221
Ansi size code221
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate
Hole diameter0.1140
Included angle35
Inscribed circle0.2500
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code221
Insert styleVCMT
Iso codeISO 13399
Iso insert codeVCMT110304
Iso size code110304
Manufacturer gradeIC908
Maximum depth of cut0.1180
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
