Iscar

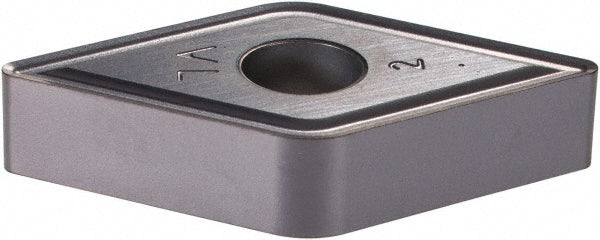

DNMG 432-VL Carbide Insert, Grade IC908, TiN - Iscar 5505848
MFR# 5505848ISO/ANSI# DNMG150408Cat# DNMG 432-VLSeries Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeIC908
MaterialCarbide
CoatingTiN
Description
The Iscar 5505848 is a DNMG 432-VL carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerVL
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 432-VL
Iso insert codeDNMG150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 432-VL
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
