Iscar

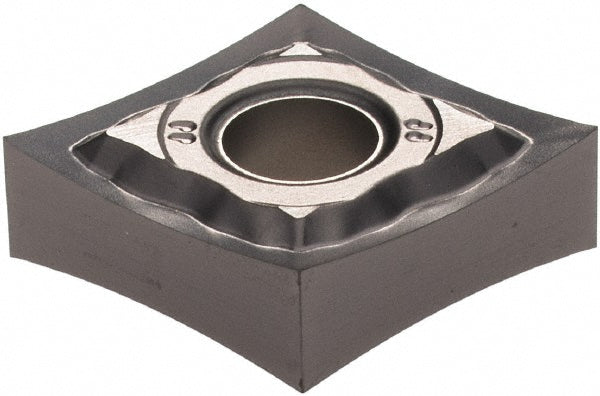

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505849
MFR# 5505849ISO/ANSI# ISO 13399Series Isoturn
$25.03List $32.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5505849 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code430
Insert styleCNGG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0787
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeG
