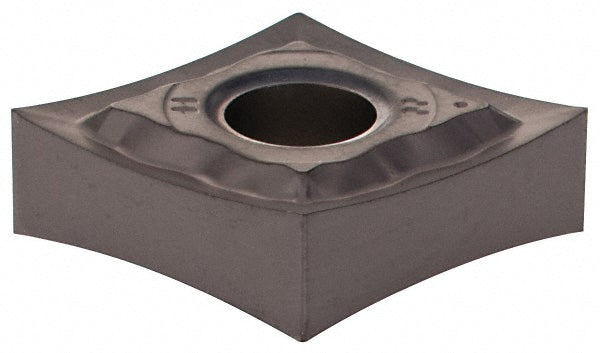

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5505850
MFR# 5505850ISO/ANSI# ISO 13399Series Isoturn
$25.03List $32.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5505850 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code430
Insert styleCNGG
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0984
Primary workpiece materialH; M; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeG
