Iscar

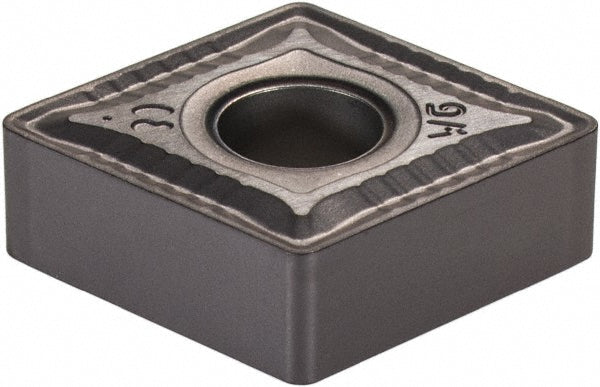

CNMG 432-WG Solid Carbide Insert, Grade IC907, TiN - Iscar 5505858
MFR# 5505858ISO/ANSI# CNMG 432-WGCat# CNMG 432-WGSeries Isoturn
$16.45List $21.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5505858 is a CNMG 432-WG solid carbide indexable insert, grade IC907, TiN coated. Suited for universal.
Specifications
Chip breakerWG
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-WG
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 432-WG
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
