Iscar

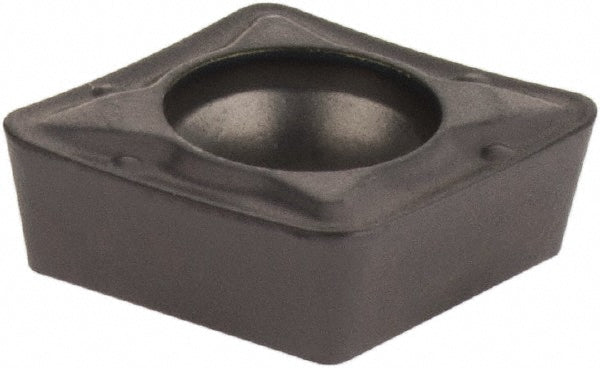

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5505912
MFR# 5505912ISO/ANSI# ISO 13399Series Isoturn
$13.64List $17.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5505912 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerPF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialCarbide
Insert shapeDiamond
Insert size code2-2
Insert styleCPMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0984
Primary workpiece materialUniversal
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
