Iscar

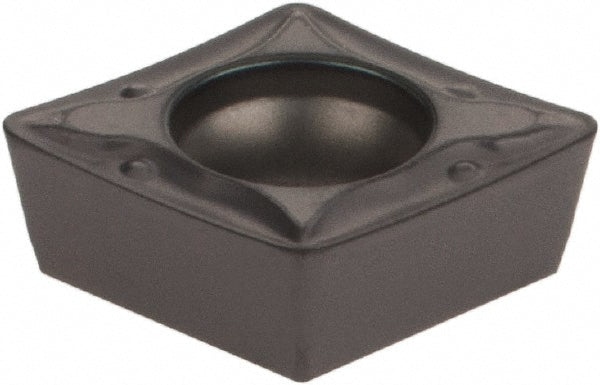

CPMT32.52 Carbide Insert, Grade IC907, TiAlN - Iscar 5505916
MFR# 5505916ISO/ANSI# CPMT32.52Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5505916 is a CPMT32.52 carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Chip breakerPF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3740
Insert materialCarbide
Insert shapeDiamond
Insert size code3-2
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT32.52
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.1380
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
