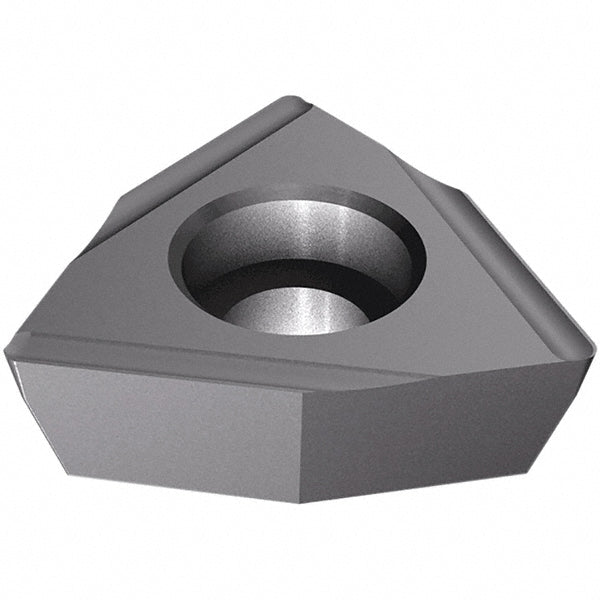

ISO 13399 Solid Carbide Insert, Grade IC08 - Iscar 5505952
MFR# 5505952ISO/ANSI# ISO 13399Series Isoturn
$23.42List $30.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC08
MaterialSolid Carbide
Description
The Iscar 5505952 is a ISO 13399 solid carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
Chip breakerX
Clearance codeP
Coating processUncoated
Corner radius in1/64
Hole diameter0.1457
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.2362
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code060
Insert styleWPEX
Insert thickness0.1575
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC08
Maximum depth of cut0.1181
Primary workpiece materialNon-Ferrous Metal
Relief angle11
StandardsISO 13399
Tolerance codeE
