Iscar

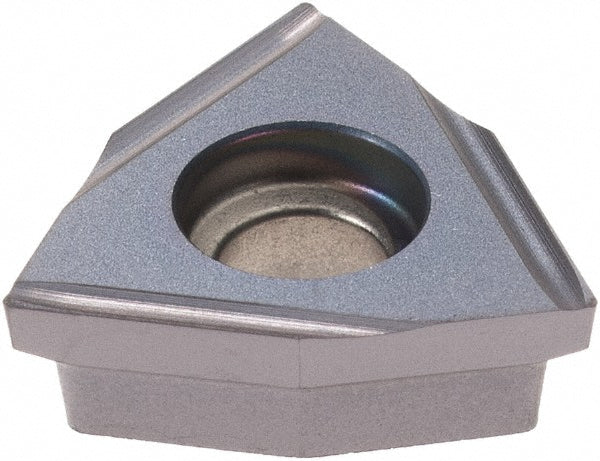

WPEX 060402R08 Carbide Insert, Grade IC908, TiN - Iscar 5505996
MFR# 5505996ISO/ANSI# WPEX 060402R08Cat# WPEX 060402R08Series Isoturn
$29.98List $38.40
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC908
MaterialCarbide
CoatingTiN
Description
The Iscar 5505996 is a WPEX 060402R08 carbide indexable insert, grade IC908, TiN coated. Suited for universal.
Specifications
Chip breakerX
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius0.0080
Hole diameter0.1460
Included angle80
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.2360
Insert materialCarbide
Insert shapeTrigon
Insert size code060
Insert styleWPEX
Insert thickness0.1570
Iso codeWPEX 060402R08
Length range0.0000 - 0.3000
Manufacturers catalog numberWPEX 060402R08
Manufacturer gradeIC908
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use toolNo
Primary workpiece materialUniversal
Relief angle8
StandardsISO 13399
Tolerance codeE
