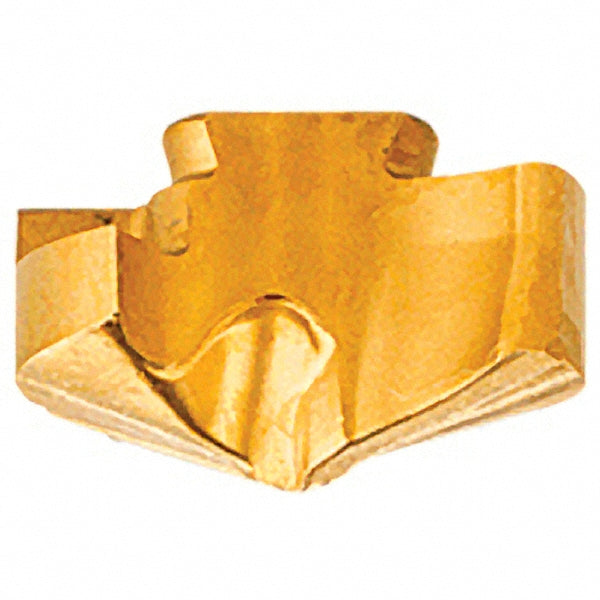

Carbide Insert, Grade IC908, TiAlN - Iscar 5506054

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5506054

MFR# 5506054Series IDI-SG

$113.37List $145.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5506054 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.9610
Drill point angle140
Flute typeSpiral
Functional length0.2500
Height0.4250
Included angle degree140
Insert geometrySG
Insert holding methodTwist
Insert seat size24
Iso numberIDI 244-SG
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4250
Point typeThinned
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleGeneral Purpose
Tip materialSolid Carbide
Web thinningWeb Thinned
