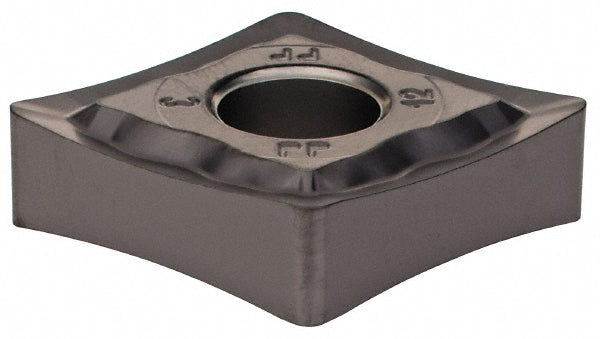

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506072
MFR# 5506072ISO/ANSI# ISO 13399Series Isoturn
$37.03List $47.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506072 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.3130
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.3150
Primary workpiece materialH; M; S
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
