Iscar

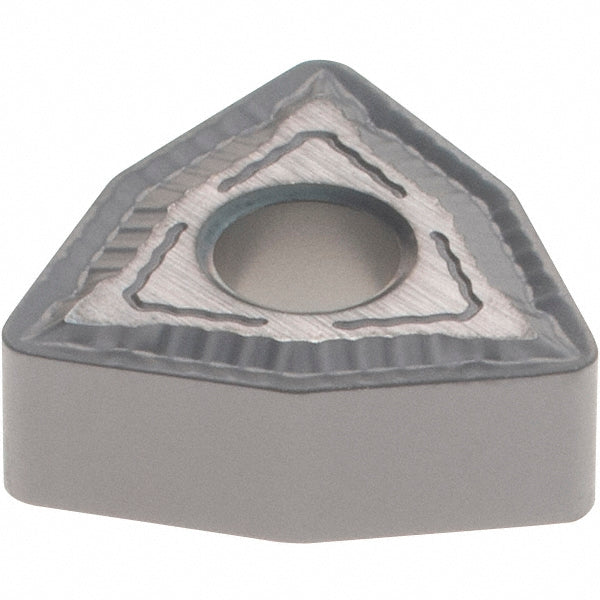

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506166
MFR# 5506166ISO/ANSI# ISO 13399Series Isoturn
$14.27List $18.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506166 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerWG
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code3-2
Insert styleWNMG
Insert thickness in5/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1378
Primary workpiece materialUniversal
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
