Iscar

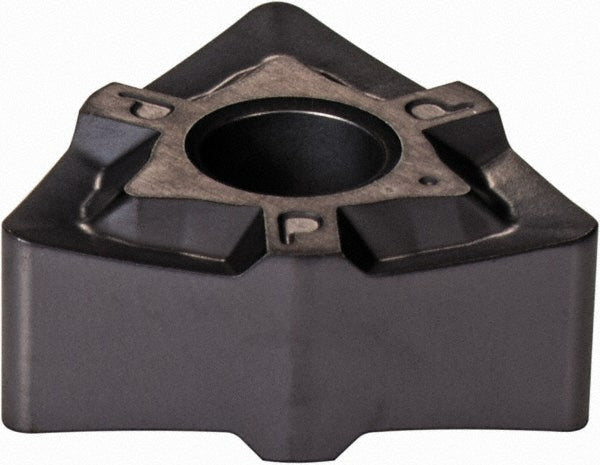

WNMG 332-PP Solid Carbide Insert, Grade IC907, TiN - Iscar 5506167
MFR# 5506167ISO/ANSI# WNMG 332-PPCat# WNMG332PPSeries Isoturn
$13.96List $17.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC907
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5506167 is a WNMG 332-PP solid carbide indexable insert, grade IC907, TiN coated. Suited for universal.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2570
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 332-PP
Length range0.0000 - 0.3000
Manufacturers catalog numberWNMG332PP
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
