Iscar

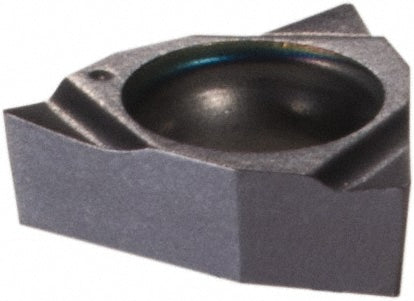

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5506173
MFR# 5506173ISO/ANSI# ISO 13399Series Isoturn
$18.25List $23.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506173 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Cutting directionRight Hand
Included angle80
Inscribed circle0.1563
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code52
Insert styleWBMT
Iso codeISO 13399
Length0.0860
Manufacturer gradeIC908
Maximum depth of cut0.0790
Primary workpiece materialUniversal
RakePositive
Relief angle5
ShapeTrigon
StandardsISO 13399
Thickness0.0626
