Iscar

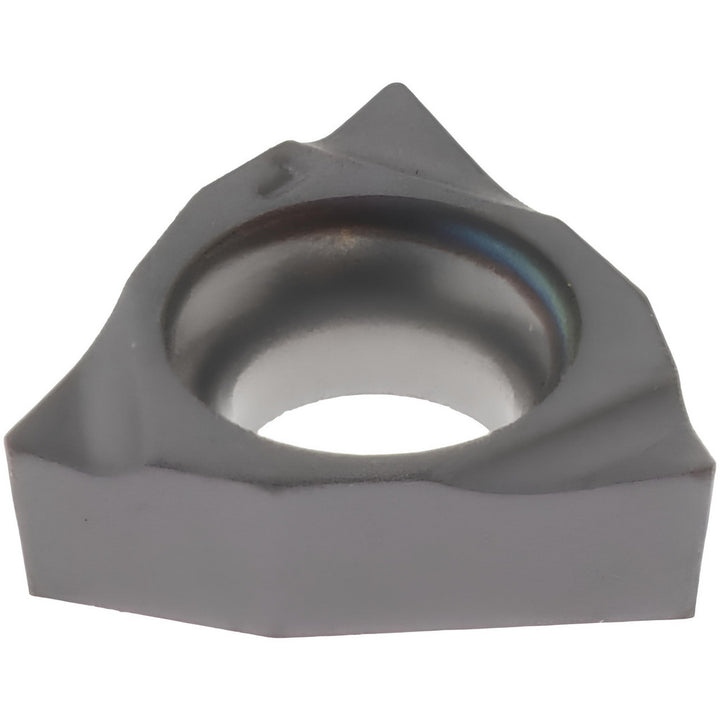

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5506174
MFR# 5506174ISO/ANSI# ISO 13399Cat# WBMT520LSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5506174 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated.
Specifications
ChipbreakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.0040
Hole diameter0.0890
Included angle80
Inscribed circle in5/32
Insert handLeft Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code52
Insert styleWBMT
Iso codeISO 13399
Length0.0860
Manufacturers catalog numberWBMT520L
Manufacturer gradeIC908
Maximum depth of cut0.0790
RakePositive
Relief angle5
StandardsISO 13399
