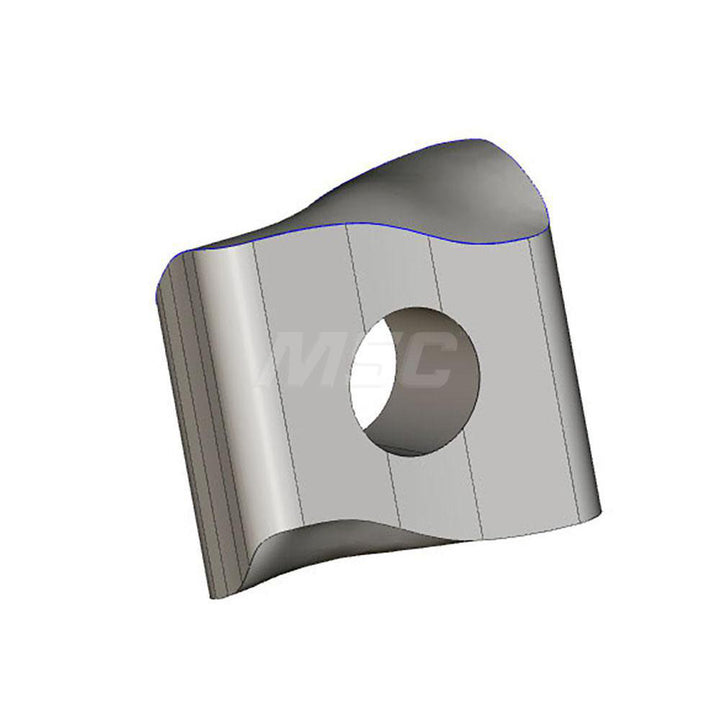

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5506185

Iscar

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5506185

MFR# 5506185ISO/ANSI# LNMX150616Series Heliturn

$20.59List $26.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeL - Rectangle
GradeIC908
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5506185 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated.

Specifications

Ansi insert codeLNMX
Chip breakerHT
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate
Included angle90
Insert handRight Hand
Insert holding methodScrew
Insert length0.5906
Insert materialCarbide
Insert shapeL - Rectangle
Insert size code150616
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Iso insert codeLNMX150616
Iso size code150616
Length range0.5000 - 0.6000
Manufacturer gradeIC908
Maximum depth of cut0.3150
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
