Iscar

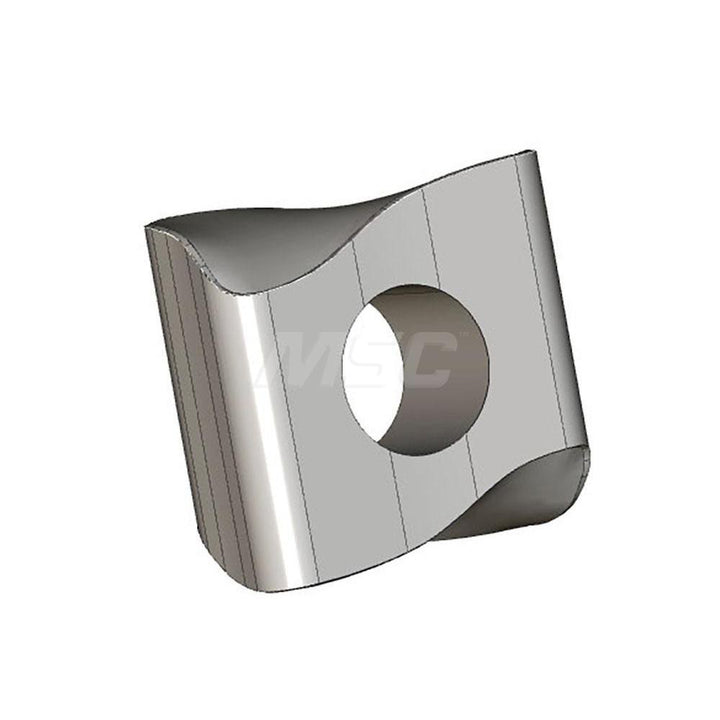

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5506186
MFR# 5506186ISO/ANSI# ISO 13399Series Heliturn
$20.95List $26.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5506186 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Included angle90
Insert handLeft Hand
Insert holding methodScrew
Insert length0.5906
Insert materialCarbide
Insert shapeRectangle
Insert size code150616
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC908
Maximum depth of cut0.3150
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
