Iscar

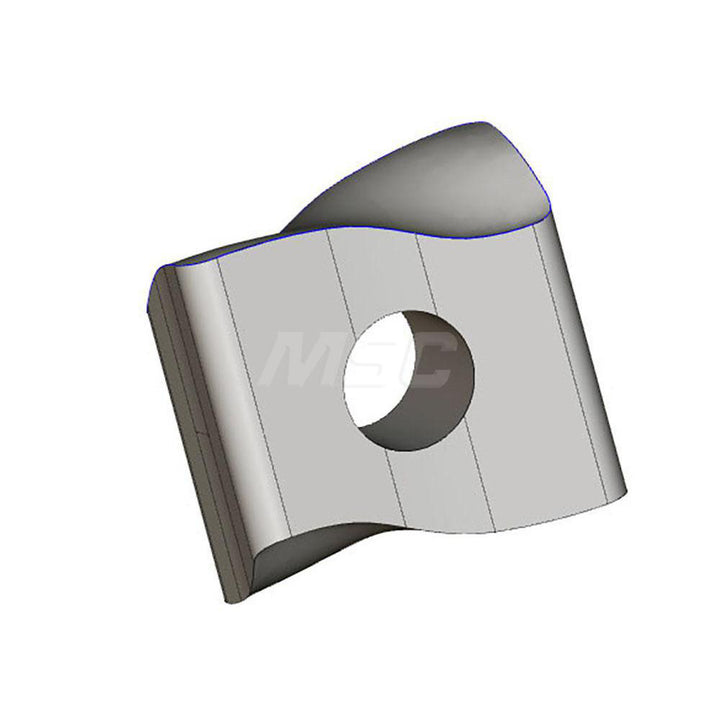

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5506187
MFR# 5506187ISO/ANSI# ISO 13399Series Heliturn
$17.62List $22.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeL - Rectangle
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5506187 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Chip breakerHT
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Included angle90
Insert handRight Hand
Insert holding methodScrew
Insert length0.5906
Insert materialCarbide
Insert shapeL - Rectangle
Insert size code150612
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Iso size code150612
Length range0.5000 - 0.6000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.2760
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
