Iscar

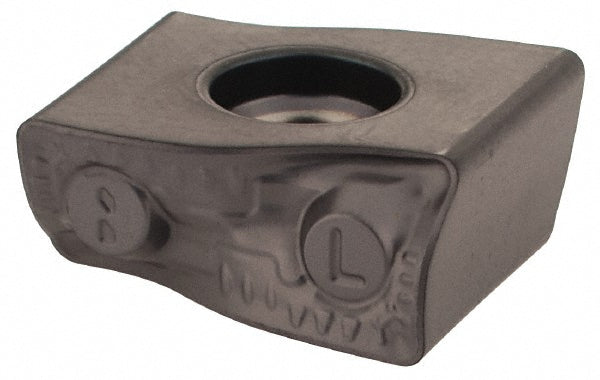

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506192
MFR# 5506192ISO/ANSI# ISO 13399Series Heliturn
$17.62List $22.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506192 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting directionLeft Hand
Included angle90.0
Insert handLeft Hand
Insert holding methodScrew
Insert length0.5906
Insert materialSolid Carbide
Insert shapeRectangle
Insert size code150608
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.2360
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
