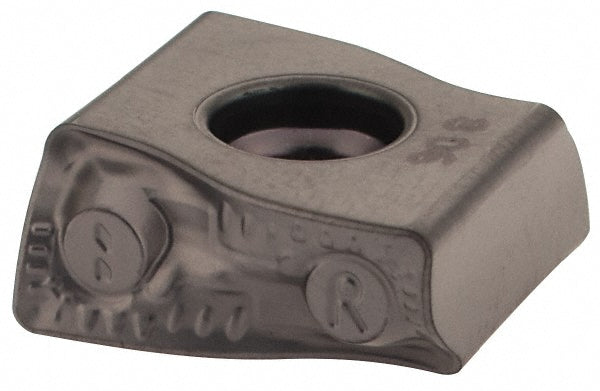

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5506193
MFR# 5506193ISO/ANSI# ISO 13399Cat# LNMX150608RSeries Heliturn
$20.59List $26.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506193 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for k, m, p.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle90.0
Insert handRight Hand
Insert holding methodScrew
Insert length0.5906
Insert materialSolid Carbide
Insert shapeRectangle
Insert size code150608
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturers catalog numberLNMX150608R
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Maximum depth of cut0.2360
Primary workpiece materialK; M; P
RakePositive
Relief angle0
Secondary workpiece materialH; S
StandardsISO 13399
Tolerance codeM
