Iscar

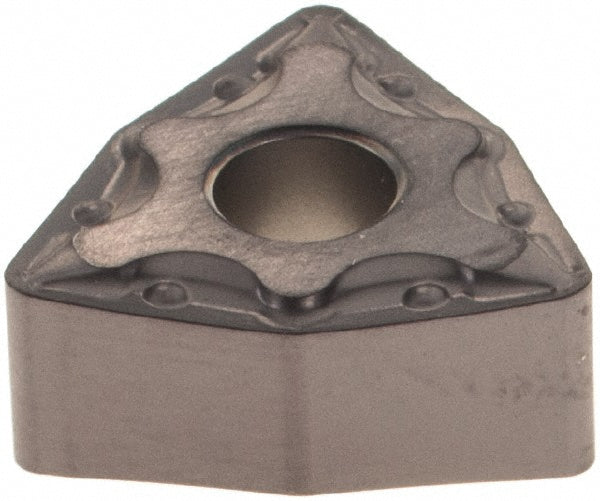

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506228
MFR# 5506228ISO/ANSI# ISO 13399Series Isoturn
$14.52List $18.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506228 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialSolid Carbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1378
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Wiper edgeYes
