Iscar

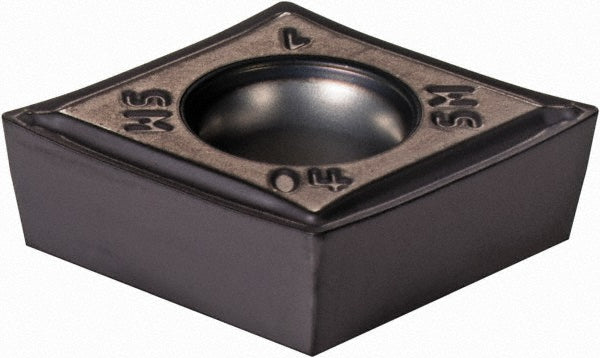

CCMT 431-SM Carbide Insert, Grade IC907, TiN - Iscar 5506275
MFR# 5506275ISO/ANSI# CCMT120404Cat# CCMT 431-SMSeries Isoturn
$20.11List $25.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC907
MaterialCarbide
CoatingTiN
Description
The Iscar 5506275 is a CCMT 431-SM carbide indexable insert, grade IC907, TiN coated. Suited for universal.
Specifications
Ansi insert codeCCMT431
Ansi size code431
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.2170
Included angle80
Inscribed circle in1/2
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 431-SM
Iso insert codeCCMT120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog numberCCMT 431-SM
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1380
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
