Iscar

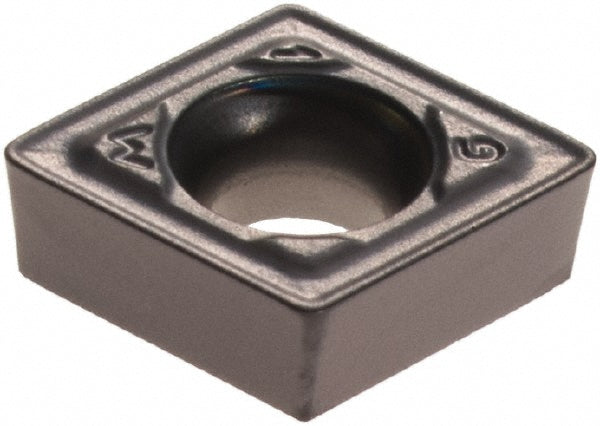

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506280
MFR# 5506280ISO/ANSI# ISO 13399Series Isoturn
$14.66List $18.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506280 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Chip breakerWG
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0787
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
