Iscar

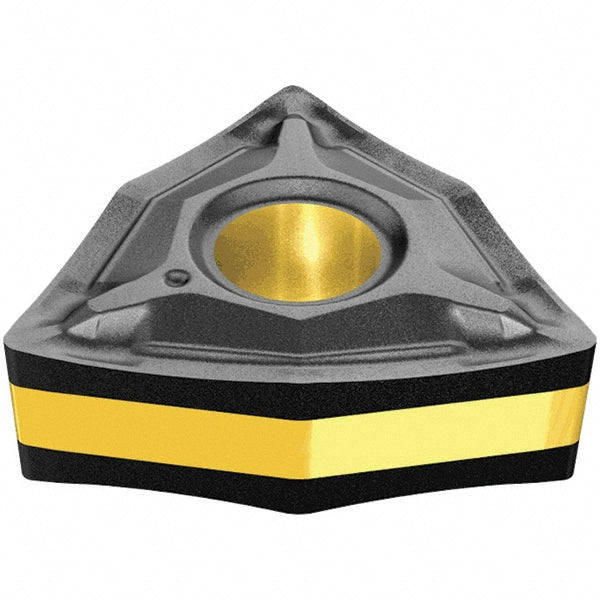

ISO 13399 Cermet Insert, Grade IC530N, TiCN/TiN - Iscar 5506297
MFR# 5506297ISO/ANSI# ISO 13399Series Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeIC530N
MaterialCermet
CoatingTiCN/TiN
Description
The Iscar 5506297 is a ISO 13399 cermet indexable insert, grade IC530N, TiCN/TiN coated. Suited for stainless steel, steel.
Specifications
Chip breakerWG
Clearance codeN
Coating finishTiCN/TiN
Coating processPVD
Corner radius in1/64
Included angle80.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2567
Insert materialCermet
Insert shapeTrigon
Insert size code331
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC530N
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Wiper edgeYes
