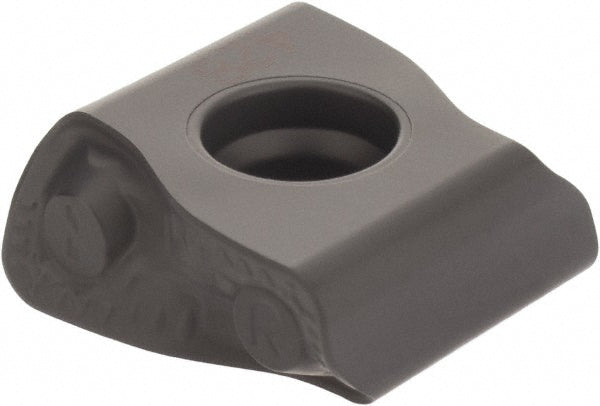

ISO 13399 Solid Carbide Insert, Grade IC428, TiC - Iscar 5506319
MFR# 5506319ISO/ANSI# ISO 13399Cat# LNMX150616RSeries Heliturn
$20.59List $26.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC428
MaterialSolid Carbide
CoatingTiC
Description
The Iscar 5506319 is a ISO 13399 solid carbide indexable insert, grade IC428, TiC coated. Suited for k.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/16
Cutting directionRight Hand
Included angle90.0
Insert handRight Hand
Insert holding methodScrew
Insert length0.5906
Insert materialSolid Carbide
Insert shapeRectangle
Insert size code150616
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturers catalog numberLNMX150616R
Manufacturer gradeIC428
Maximum depth of cut (mm)8.00
Primary workpiece materialK
RakePositive
Relief angle0
Secondary workpiece materialH; P
StandardsISO 13399
Stocking categoryD
Tolerance codeM
