Iscar

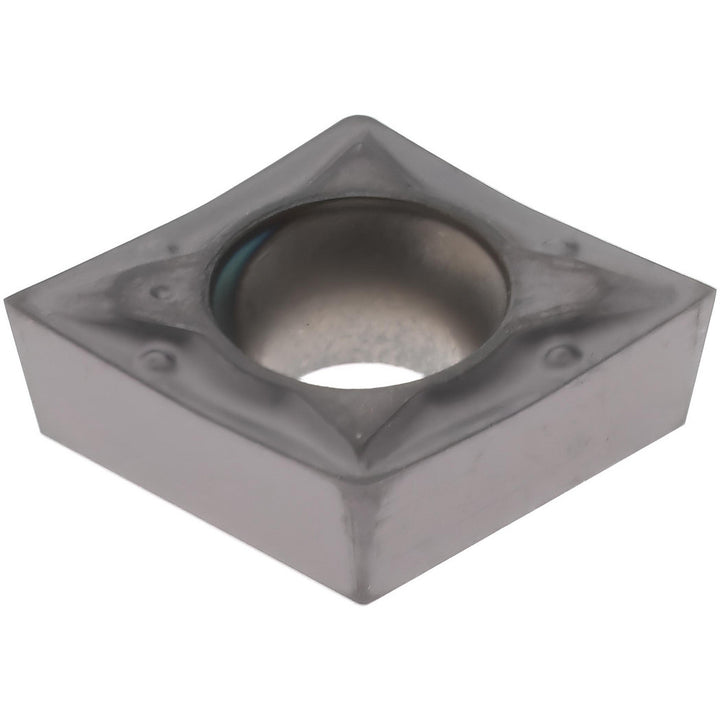

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506323
MFR# 5506323ISO/ANSI# ISO 13399Series Isoturn
$27.53List $35.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506323 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-002
Insert styleCCET
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0787
Primary workpiece materialUniversal
Relief angle7
StandardsISO 13399
Tolerance codeE
Wiper edgeYes
