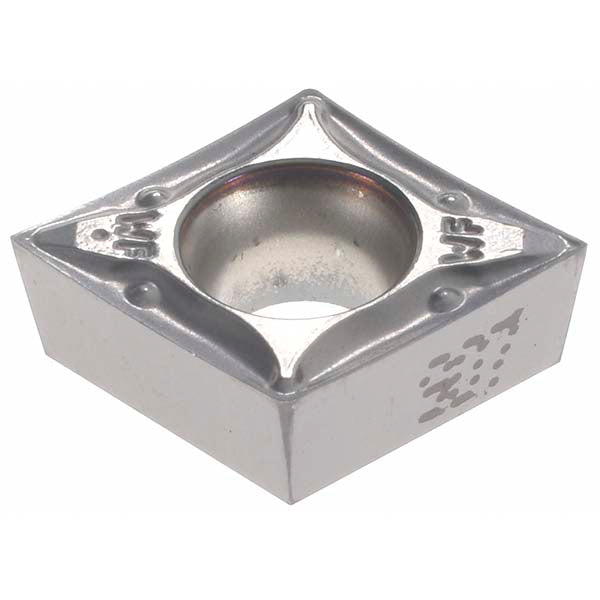

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5506324

Iscar

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5506324

MFR# 5506324ISO/ANSI# CCET09T3005Series Isoturn

$31.27List $40.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC907
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5506324 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated.

Specifications

Ansi insert codeCCET3-002
Ansi size code3-002
Chip breakerWF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3740
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code3-002
Insert styleCCET
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeCCET09T3005
Iso size code09T3005
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.0787
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeE
Wiper edgeYes
