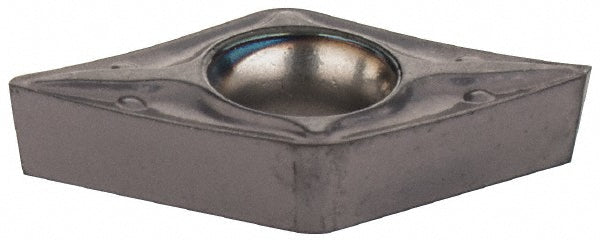

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506325
MFR# 5506325ISO/ANSI# ISO 13399Cat# DCET2.002RSeries Isoturn
$32.20List $41.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506325 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting directionRight Hand
Hole diameter0.1102
Included angle55.0
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.3030
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code2-002
Insert styleDCET
Insert thickness in3/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturers catalog numberDCET2.002R
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1180
Primary workpiece materialH; M; S
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeE
Wiper edgeYes
