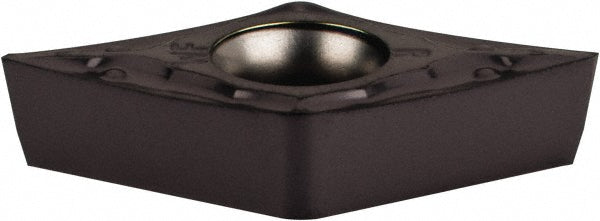

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506326
MFR# 5506326ISO/ANSI# ISO 13399Cat# DCET3.002RSeries Isoturn
$37.82List $48.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506326 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-002
Insert styleDCET
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturers catalog numberDCET3.002R
Manufacturer gradeIC907
Material gradeC5; C6
Maximum depth of cut0.1180
Primary workpiece materialH; M; S
Relief angle7
StandardsISO 13399
Tolerance codeE
Wiper edgeYes
