Iscar

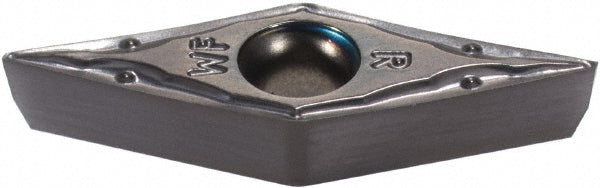

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5506327
MFR# 5506327ISO/ANSI# VCET1103005Series Isoturn
$44.83List $57.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC907
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5506327 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated.
Specifications
Ansi insert codeVCET22.002
Ansi size code22.002
Chip breakerWF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.1140
Included angle35
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4370
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code22.002
Insert styleVCET
Insert thickness in1/8
Iso codeISO 13399
Iso insert codeVCET1103005
Iso size code1103005
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1575
Relief angle7
Side clearancePositive
StandardsISO 13399
Stocking categoryD
Tolerance codeE
Wiper edgeYes
