Iscar

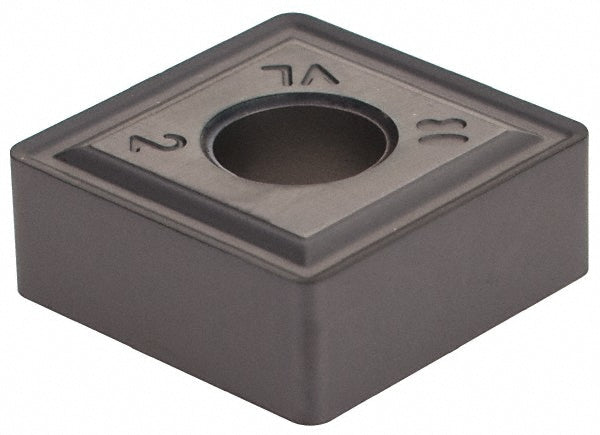

SNMG432 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506328
MFR# 5506328ISO/ANSI# SNMG432Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506328 is a SNMG432 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerVL
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle90.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG432
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1970
Primary workpiece materialH; M; S
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in1/2
