Iscar

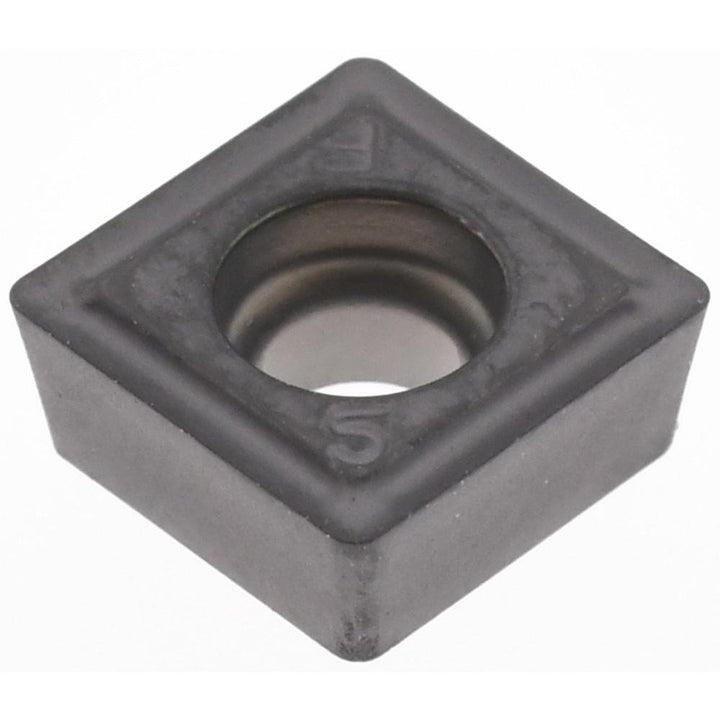

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5506338
MFR# 5506338ISO/ANSI# ISO 13399Series DR-TWIST
$16.05List $20.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5506338 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
ChipbreakerGF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Included angle degree90
Inscribed circle0.2126
Insert materialCarbide
Insert size050204
Insert size code05
Insert styleSOMX
Iso codeISO 13399
Length0.212
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.0945
Width0.212
