Iscar

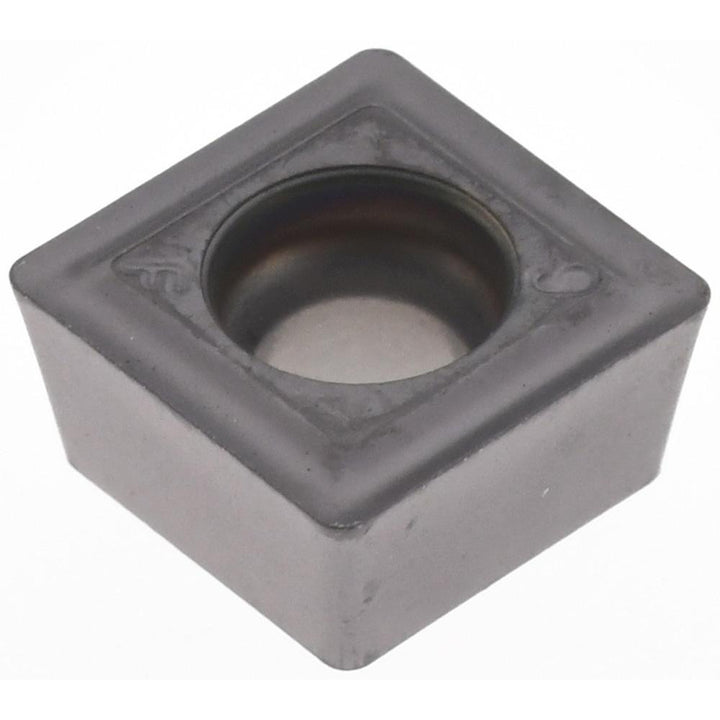

ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5506340
MFR# 5506340ISO/ANSI# ISO 13399Series DR-TWIST
$16.87List $21.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5506340 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
ChipbreakerGF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Included angle degree90
Inscribed circle0.2441
Insert materialCarbide
Insert size060304
Insert size code06
Insert styleSOMX
Iso codeISO 13399
Length0.244
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.1260
Width0.244
