Iscar

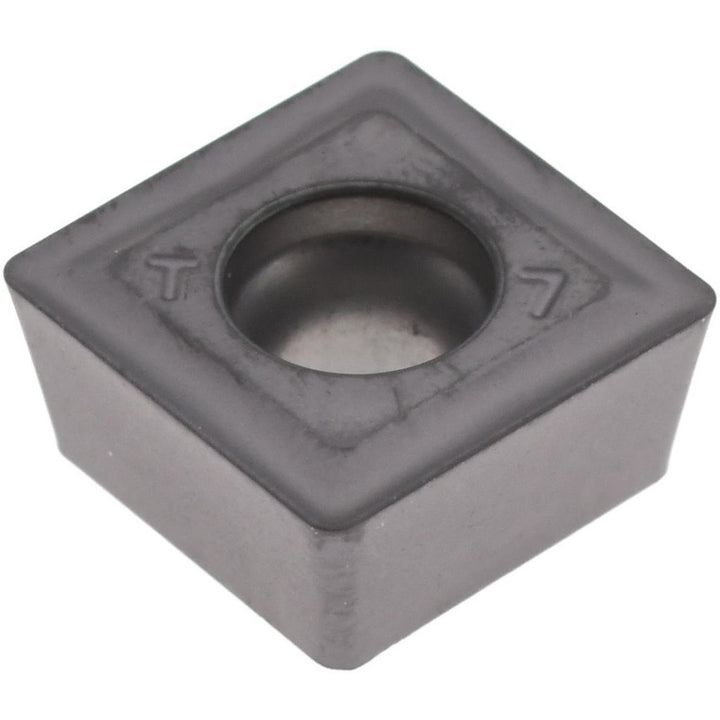

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5506341
MFR# 5506341ISO/ANSI# ISO 13399Series DR-TWIST
$16.87List $21.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5506341 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerDT
Coating finishCoated
Coating processPVD
Corner radius0.0197
Included angle degree90
Inscribed circle0.3031
Insert materialSolid Carbide
Insert size070305
Insert size code07
Insert styleSOMX
Iso codeISO 13399
Length0.3030
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.1417
Width0.3030
