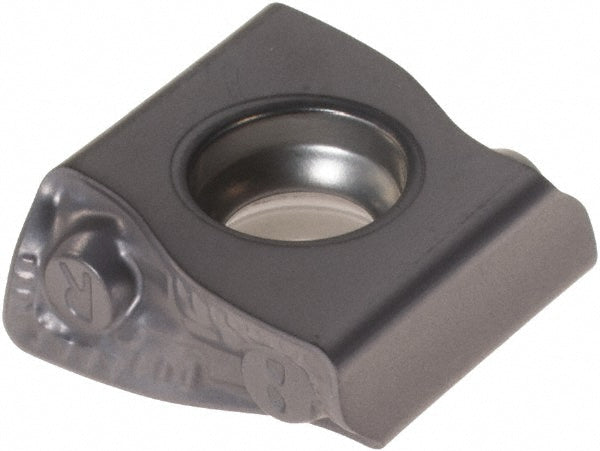

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5506343

Iscar

ISO 13399 Carbide Insert, Grade IC907, TiAlN - Iscar 5506343

MFR# 5506343ISO/ANSI# LNMX110408Series Heliturn

$14.66List $18.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeL - Rectangle
GradeIC907
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5506343 is a ISO 13399 carbide indexable insert, grade IC907, TiAlN coated. Suited for universal.

Specifications

Ansi insert codeLNMX
Chip breakerHT
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Included angle90
Insert handRight Hand
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeL - Rectangle
Insert size code110408
Insert styleLNMX
Insert thickness0.4488
Iso codeISO 13399
Iso insert codeLNMX110408
Iso size code110408
Length range0.4000 - 0.5000
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1970
Primary workpiece materialUniversal
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Width0.1870
