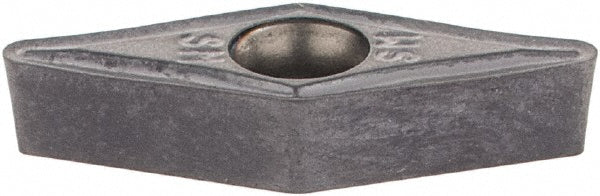

ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5506483
MFR# 5506483ISO/ANSI# ISO 13399Series Isoturn
$24.09List $30.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506483 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1142
Included angle35.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code222
Insert styleVCMT
Insert thickness in1/8
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC908
Maximum depth of cut0.0787
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
