Iscar
ISO 13399 Carbide Insert, Grade IC908, TiAlN - Iscar 5506613
MFR# 5506613ISO/ANSI# ISO 13399Series DR-TWIST
$14.76List $18.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialCarbide
CoatingTiAlN
Description

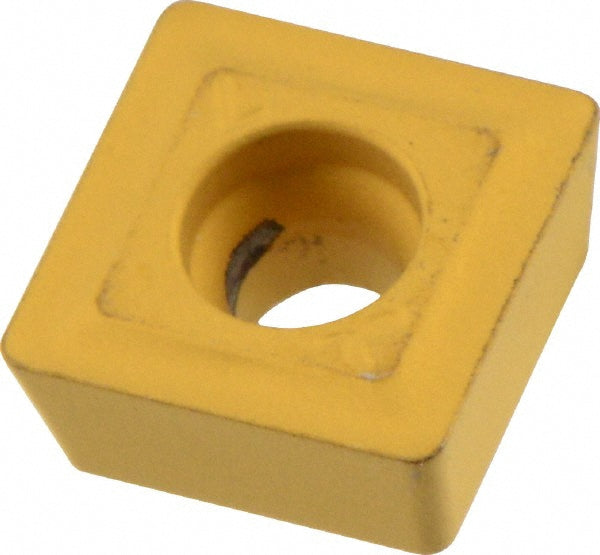

The Iscar 5506613 is a ISO 13399 carbide indexable insert, grade IC908, TiAlN coated. Suited for universal.
Specifications
ChipbreakerDT
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Included angle degree90
Inscribed circle0.3031
Insert materialCarbide
Insert size070305
Insert size code07
Insert styleSOMX
Iso codeISO 13399
Length0.303
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.1417
Width0.303
