Iscar

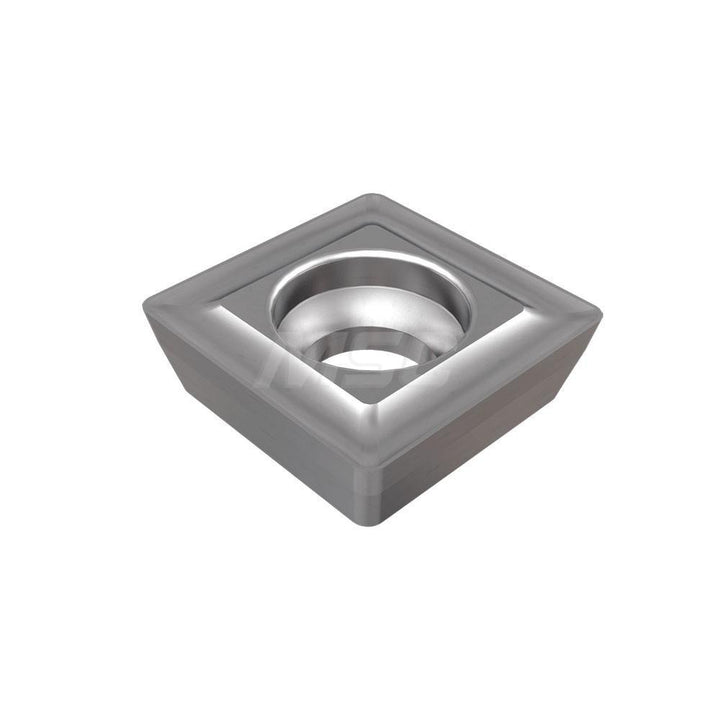

ISO 13399 Carbide Insert, Grade IC9080, TiCN - Iscar 5506616
MFR# 5506616ISO/ANSI# ISO 13399Series DR-TWIST
$22.01List $27.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC9080
MaterialCarbide
CoatingTiCN
Description
The Iscar 5506616 is a ISO 13399 carbide indexable insert, grade IC9080, TiCN coated. Suited for cast iron, steel.
Specifications
ChipbreakerDT
Coating finishTiCN
Coating processCVD
Corner radius0.0472
Included angle degree90
Inscribed circle0.6300
Insert materialCarbide
Insert size160512
Insert size code16
Insert styleSOMT
Iso codeISO 13399
Length0.63
Manufacturer gradeIC9080
Primary workpiece materialCast Iron; Steel
ShapeSquare
StandardsISO 13399
Thickness0.219
Width0.63
