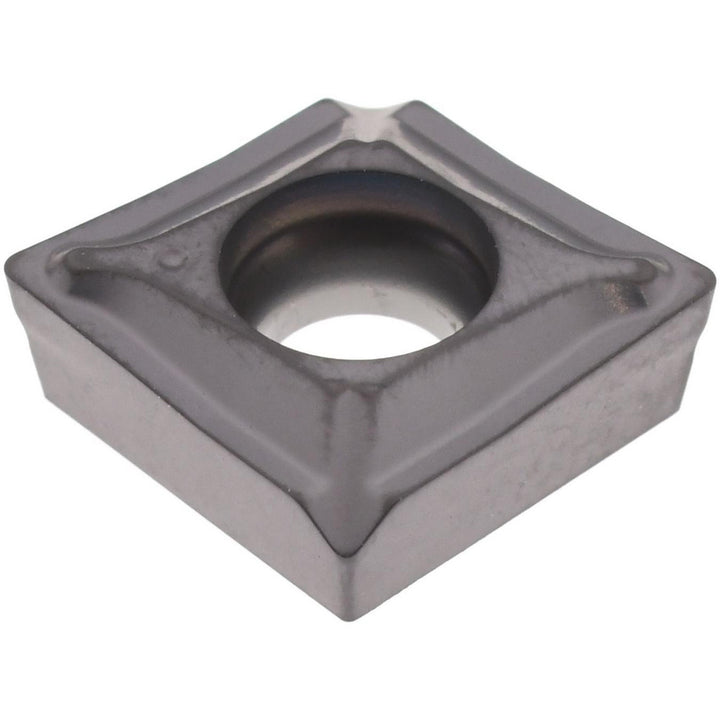

ISO 13399 Solid Carbide Insert, Grade IC908, Coated - Iscar 5506627
MFR# 5506627ISO/ANSI# ISO 13399Series DRDRILLS
$21.34List $26.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC908
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5506627 is a ISO 13399 solid carbide indexable insert, grade IC908, Coated coated. Suited for universal.
Specifications
ChipbreakerMF
Coating finishCoated
Coating processPVD
Corner radius0.0157
Included angle degree83.50
Inscribed circle0.3323
Insert materialSolid Carbide
Insert size080304
Insert size code08
Insert styleXCMT
Iso codeISO 13399
Length0.3323
Manufacturer gradeIC908
Material gradeC1; C2; C6; C7
Primary workpiece materialUniversal
Relief angle7
StandardsISO 13399
Thickness0.1252
