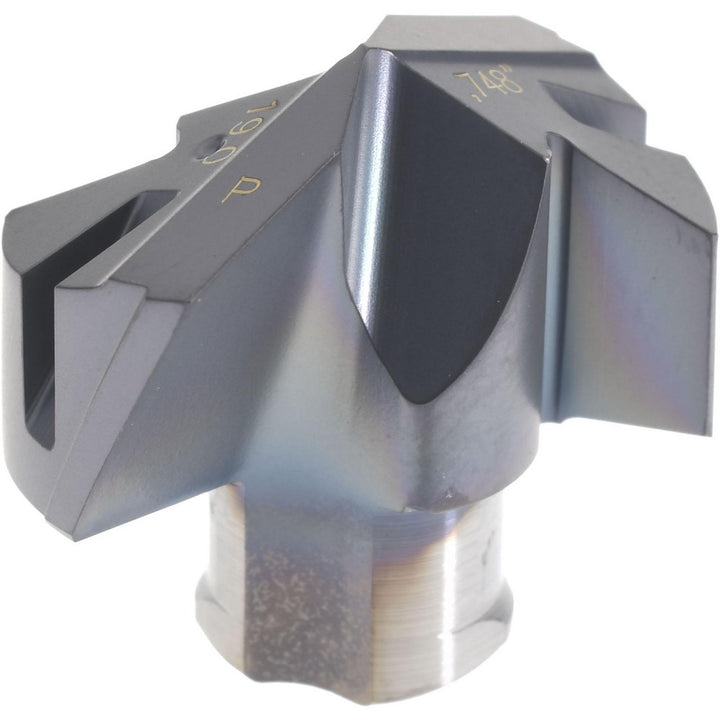

Carbide Insert, Grade IC908, TiAlN - Iscar 5506643
MFR# 5506643Series ICP
$128.84List $165.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5506643 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsHole Making; Chamfering; Gundrills; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7480
Drill point angle140
Flute length (mm)8.00
Flute typeHelical
Functional length0.3199
Height0.433
Included angle degree140
Insert geometryP
Insert holding methodClamp
Insert seat size19
Iso numberICP 190
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4334
Point typeStandard
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Spiral typeRegular Spiral
StandardsISO 13399
StyleICP
Tip materialSolid Carbide
Web thinningWeb Thinned
