Iscar

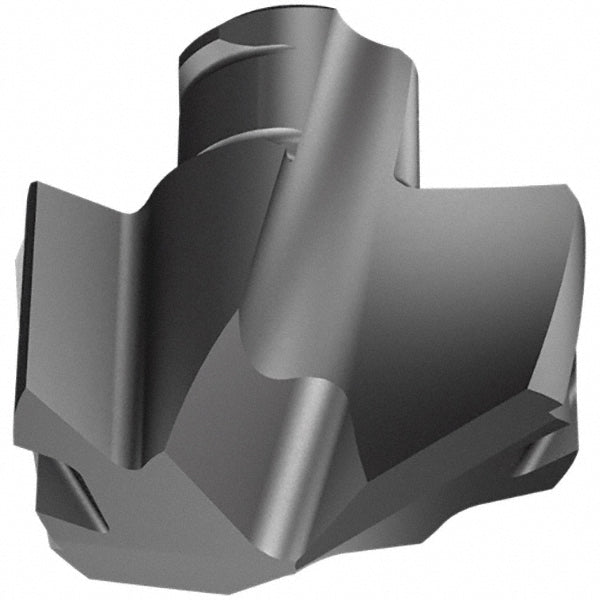

Carbide Insert, Grade IC908, TiAlN - Iscar 5506665
MFR# 5506665Series ICP
$178.42List $228.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5506665 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter1.0430
Drill point angle140
Flute typeSpiral
Functional length0.4340
Height0.6020
Included angle degree140
Insert geometryP
Insert holding methodTwist
Insert seat size26
Iso numberICP 265
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.6020
Point typeThinned
Primary workpiece materialSteel
Secondary workpiece materialStainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
