Iscar

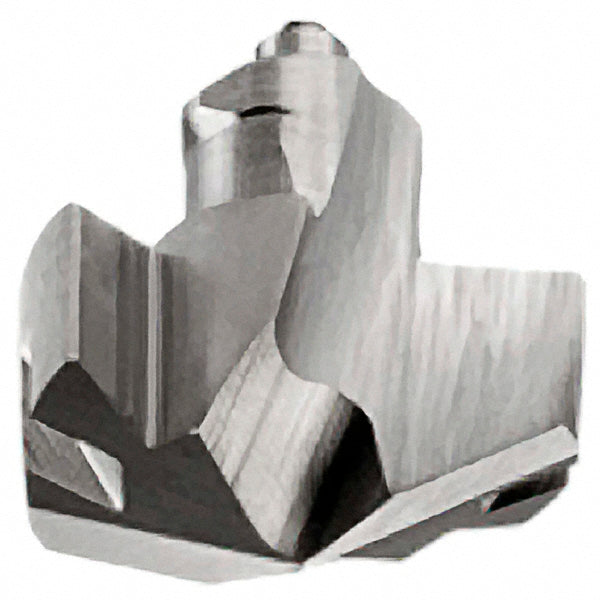

Carbide Insert, Grade IC908, TiAlN - Iscar 5506701
MFR# 5506701Series ICM
$136.60List $171.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 2 — minimum order 2
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5506701 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for stainless steel, superalloy, titanium.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7680
Drill point angle140
Flute typeSpiral
Functional length0.3170
Height0.4330
Included angle degree140
Insert geometryM
Insert holding methodTwist
Insert seat size19
Iso numberICM 195
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4330
Point typeThinned
Primary workpiece materialStainless Steel; Superalloy; Titanium
Secondary workpiece materialSteel; Cast Iron; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleT-Land
Tip materialSolid Carbide
Web thinningWeb Thinned
