Iscar

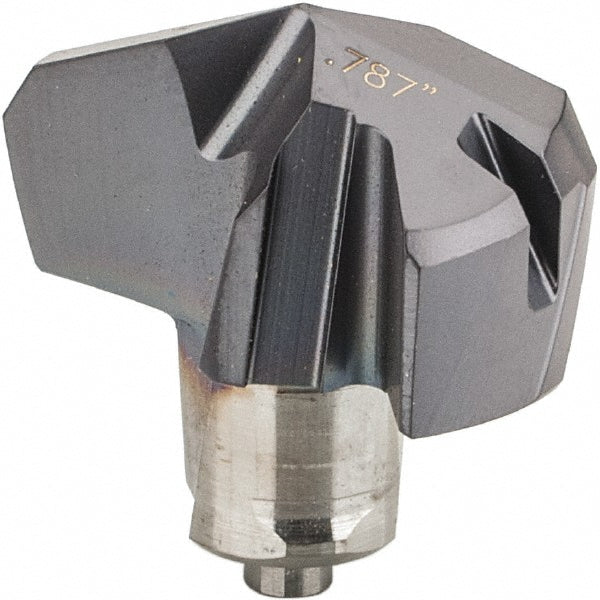

Carbide Insert, Grade IC908, TiAlN - Iscar 5506760
MFR# 5506760Series ICK
$130.56List $167.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN
Description
The Iscar 5506760 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.7870
Drill point angle140
Flute typeSpiral
Functional length0.2680
Height0.4570
Included angle degree140
Insert geometryK
Insert holding methodTwist
Insert seat size20
Iso numberICK 200
Manufacturer gradeIC908
Material gradeSubmicron
Number of flutes2
Overall length projection0.4570
Point typeThinned
Primary workpiece materialCast Iron
Secondary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium; Hard Material
Spiral typeSlow Spiral
StandardsISO 13399
StyleHoned Cutting Edge
Tip materialSolid Carbide
Web thinningWeb Thinned
