Iscar

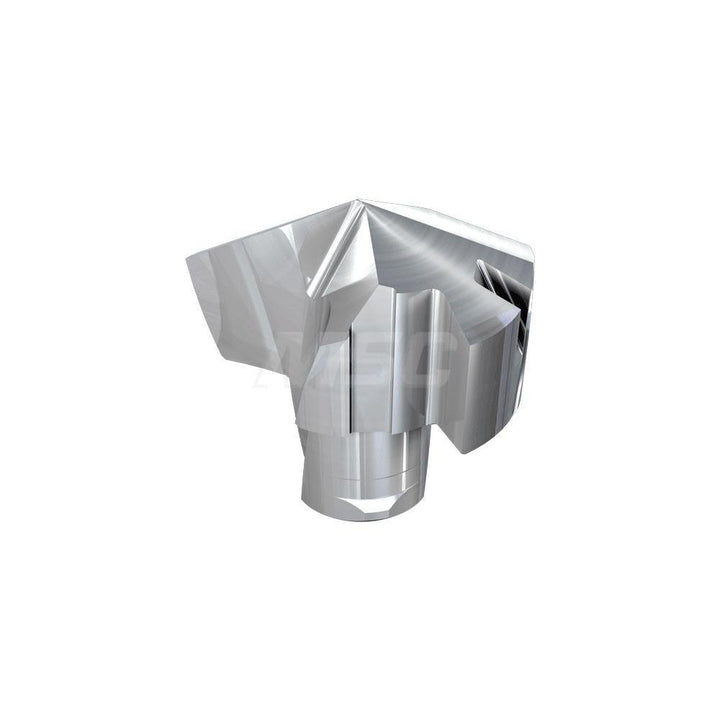

Carbide Insert, Grade IC08 - Iscar 5506805
MFR# 5506805Series ICN
$83.94List $107.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIC08
Description
The Iscar 5506805 is a carbide indexable insert, grade IC08. Suited for non-ferrous metal.
Specifications
ApplicationsDrilling
Coating processUncoated
Coolant throughNo
Cutting diameter0.3940
Drill point angle140
Flute typeSpiral
Functional length0.1850
Height0.2440
Included angle degree140
Insert geometryN
Insert holding methodTwist
Insert seat size10
Iso numberICN 100
Manufacturer gradeIC08
Material gradeSubmicron
Number of flutes2
Overall length projection0.2440
Point typeThinned
Primary workpiece materialNon-Ferrous Metal
Spiral typeSlow Spiral
StandardsISO 13399
StyleSharp; Polished
Tip materialSolid Carbide
Web thinningWeb Thinned
